Thermal Stability Sand Rammer Machine Mechnical 800g Tensile Sample

Name: Thermal Stability Sand Rammer Machine Mechnical 800g Tensile Sample
Brand: WUWAY
Price: 1 USD

China Thermal Stability Sand Rammer Machine Mechnical 800g Tensile Sample factory

Brand Name : WUWAY

Model Number : WW-SM0206

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T

Supply Ability : 20 + pcs + per month

Delivery Time : 15 work days

Packaging Details : wood box

name : sand sample preparation machinery

height of vibration shocking : 35kg

Number of vibration shocking : 3 times

compression sample : 1250g

tensile sample : 800g

thermal stability sample : 120g

Contact Now

Description:

It is used to make resin sand standard sample. Detecting gas permeability, compression resistance, shear resistance, tensile strength, thermal stability.

main specifications

weight of vibration part 25kg
height of vibration shocking 35m
Number of vibration shocking 3 times
application range compression sample, tensile sample, thermal stability sample
weight of additional block
compression sample: 1250g
tensile sample: 800g
thermal stability sample: 120g

weight of vibration part 25kg

height of vibration shocking 35mm

Number of vibration shocking 3 times

application range compression sample, tensile sample, thermal stability sample

weight of additional block

compression sample: 1250g

tensile sample: 800g

thermal stability sample: 120g

Instrument features

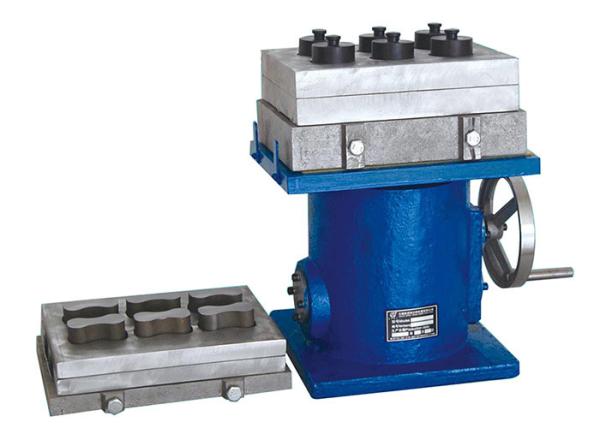

1. It consists of rack, bottom plate, sample box, pre-filled box, broaches, guide plate, weight block,

handwheel, cam and so on.

2. Can make several standard samples simultaneously.

main applications

It is widely used in foundry, machinery, casting, qualitative inspection, scientific research, university lab..
